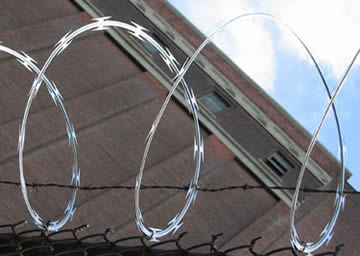

Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fences. Single coil razor wire is restless and can be easily installed.

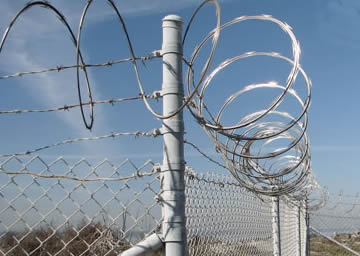

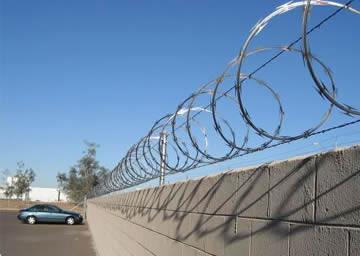

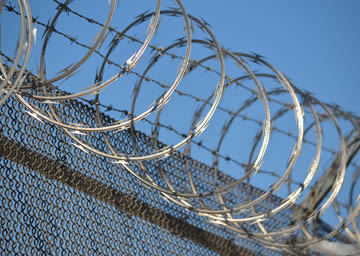

Any fence can be upgraded with one length of Single Strand Razor Wire installed in a straight line is a cheap deterrent, however in cases where additional security is required, multiple lines of razor wire can be installed or an entire fence can be fabricated from multiple strands of Single Strand Razor Wire.

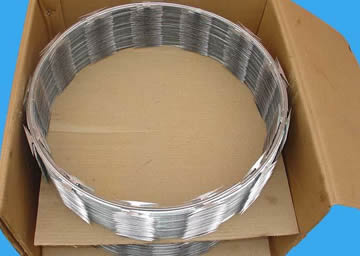

The spiral coils we manufacture have 56 (33 for 450mm diameter )spiral turns as a standard. Installations done with a 300mm aperture between spirals will result in an overall installation length of 12-15 meters per coil. Please note that this installation length is only an indication. The installation aperture can be varied according to the level of security required, however this will affect the overall installation length.
Single concertina wire Features:
| Razor Blade Type and Specification | ||||||
| Reference Number |
Blade Style | thickness | Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |
| Standard Production Type | ||||||
| Outside Diameter |
No.of Loops | Standard Length per Coil |
Type | Notes | ||
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil | ||
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil | ||
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil | ||
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil | ||
| Note: the length andthe diameter of the coil can be designed according to the customers' need. Material: hot galvanizedsteel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304. |
||||||
