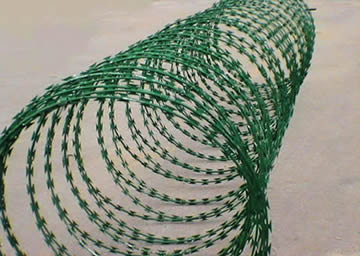

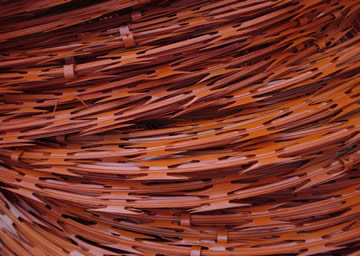

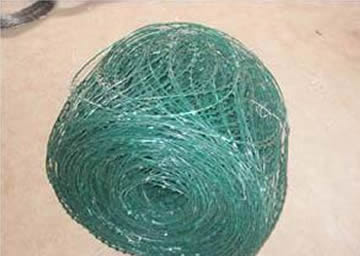

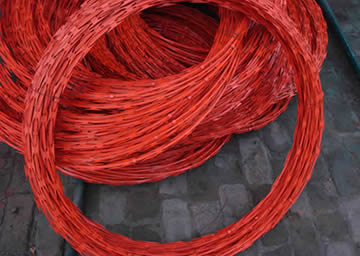

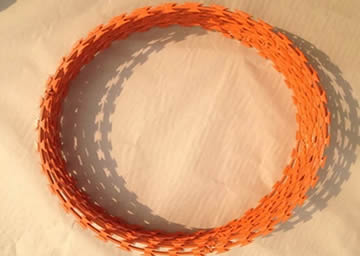

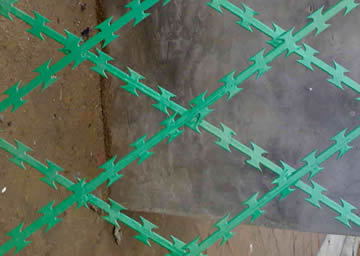

PVC Coated Razor Wire

PVC coated concertina wire refers to adding an extra PVC coating to galvanized concertina wire. It is designed to enhance corrosive resistance and appearance. Available in Orange, blue, green, white etc.

Advantages of PVC coated concertina wire:

  • Never rust in any harsh environments.
  • Resistant to all weathers.
  • Bright color warns no entry.
  • Long durability.

Applications:

  1. Residential and commercial security;
  2. Expressway and high road barrier;
  3. Gardens;
  4. Boundary;
  5. Prison;

Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type

Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
